Wire Rope Hoist
wire rope hoist

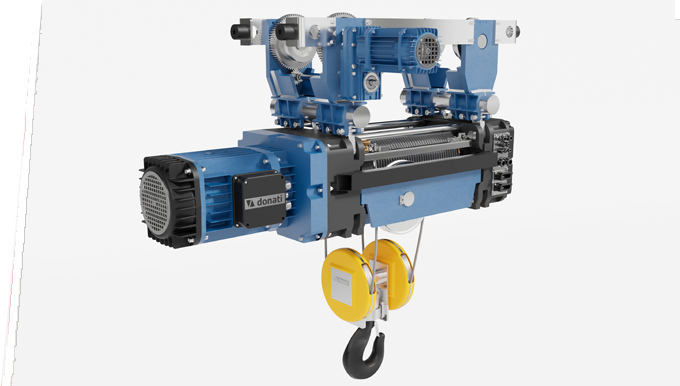

A wire rope hoist is a type of lifting mechanism commonly used in cranes and other material handling equipment. It consists of a drum or drum-like structure around which a wire rope is wound. Here are the key features and characteristics of a wire rope hoist:
- 1. Components
- Drum: The main component around which the wire rope is wound and stored
- Wire Rope: A high-strength steel cable that runs over sheaves (pulleys) and is wound around the drum
- Gearbox: Transmits the power from the motor to the drum, providing the necessary torque for lifting operations.
- Brake: Ensures the load remains stationary when the hoist motor is not running and provides additional safety during lifting and lowering.
- 2. Types of Wire Rope Hoists:
- Electric Wire Rope Hoist: Operates using an electric motor for lifting and lowering operations. It is powered by AC (alternating current) motors depending on the application.
- 3. Features
- Lifting Capacity: Wire rope hoists are available in a wide range of lifting capacities, from light-duty to heavy-duty applications, depending on the size and strength of the wire rope and components.
- Speed Control: Electric wire rope hoists can often be equipped with variable speed controls for precise positioning of loads.
- Safety Features: Include overload protection devices, limit switches to prevent over-travel, and emergency stop buttons to ensure safe operation.
- Compact Design: Wire rope hoists are designed to be compact and efficient, making them suitable for various crane configurations and applications.
- 4. Applications:
- Overhead Cranes: Used as the lifting mechanism in overhead bridge cranes and gantry cranes for handling heavy loads in industrial environments.
- Hoists: Stand-alone hoists are used in workshops, warehouses, and construction sites for lifting and positioning materials and equipment.
- Material Handling: Commonly used in manufacturing, mining, construction, and shipping industries for lifting and moving loads of various sizes and weights.
- 5. Maintenance
- Regular inspection and maintenance of wire ropes, sheaves, brakes, and other components are essential to ensure safe and reliable operation.
- Lubrication of the wire rope and inspection for wear and tear are critical to prevent accidents and ensure the longevity of the hoist.
Wire rope hoists are versatile and essential components in many industrial and commercial settings, providing efficient and safe lifting solutions for a wide range of applications. Choosing the right type and capacity of wire rope hoist depends on factors such as load requirements, operational environment, and safety considerations.
